T32546 Dasqua Combination Square Set with Digital Protractor, 4 Pc.
Covering all traditional applications, but with higher accuracy.
The four-piece set of the T32546 Combination Square Set can be used for layouts, set-ups, checking heights, depths, angle set-ups, and more.
The digital protractor head has a maximum range measuring 180°, has accuracy within 0.2°, and features a fine adjustment screw for lockdown.
The square head features a bubble to indicate if the horizontal is level, is accurate at 90° to 8’, and is accurate at 45° to 10’.
The center head finds the center of cylindrical objects with an accuracy of ±0.15mm.
Place the stock in the center square, scribe a line, rotate the stock, and scribe again.
The ruler can be used to measure between 0–12" with graduations displayed in 1/16" and 0.5mm increments marked on one side, and 1/32" and 1mm increments marked on the other.
Dasqua takes responsibility for of all its products by providing a 2-year warranty.
Parts found to be defective shall be replaced or repaired at Dasqua’s sole discretion.
Contact Dasqua regarding warranties on their products and technical support.
Made in an ISO 9001 factory

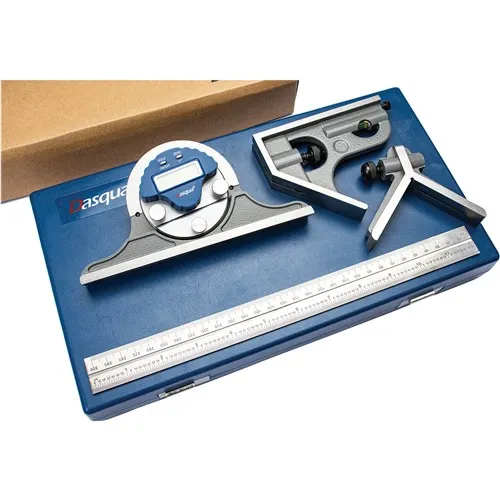

INCLUDES:
- 180° Digital protractor head
- Square head with leveling bubble
- Center head for finding the center of a cylinder
- 12" ruler with 1/16" graduations on one side and 1/32" graduations on the other
