Description

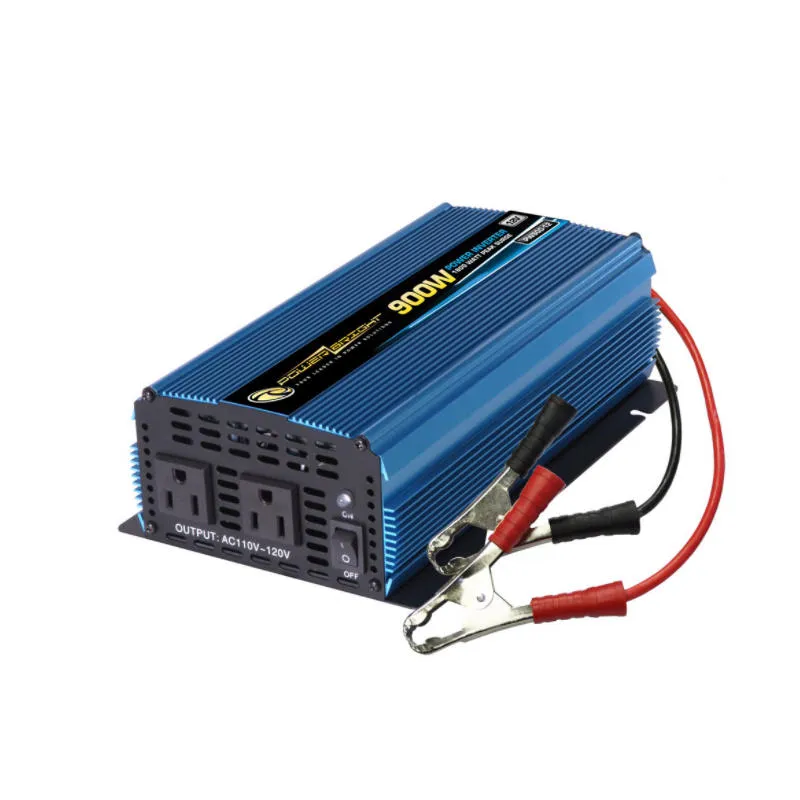

Part Number: PW900-12

Features:

• 900 watts continuous power
• 1800 watts peak power
• Anodized aluminum case provides max heat dissipation
• External, replaceable 3 x 30 amp spade type fuses
• 3 feet cables included
• Built-in cooling fan
• Overload Indicator
• Power ON/OFF Switch

Specifications:

• Continuous Power: 900W
• Peak Load Power Rate: 1800W
• Input DC Voltage Range: 10-15.5V
• No Load Current Draw: < 0.13A
• Output Frequency Range: 60 +/- 3Hz
• Output Voltage Range: 117 +/- 10%
• Max Power Efficiency: 90%
• Low Voltage Alarm: 10.5 +/- 0.5V
• High Voltage Cut Off: 15.5 +/- 1V
• Short Protection: Yes
• Low Voltage Cut Off: 10 +/- 0.5V
• Overload Protect: Yes
• Input Voltage: DC 12V
• Dimensions (LxWxH): 10.35 x 5.79 x 2.83 in
• Weight: 3.3 lbs.
