The next-generation single-gas detector that helps you reduce cost, ensure compliance and know your workers are protected.
Honeywell BW™ Solo has everything you expect — plus additional features to make your compliance easier and more cost-effective than ever. All with a reliable life span, one-button operation and small, lightweight profile. Honeywell BW™ Solo is:
• The easiest single-gas detector to service, with no need to take it apart to replace sensors, batteries and sensor filters. That means long life and low cost.
• Complete with an extensive selection of sensor options. Count on comprehensive detection, whether you’re monitoring for common or exotic hazards.
• The first single-gas detector with the 1-Series sensor for CO, H2S, O2 and CO2. That means high accuracy, lower costs and faster sensor response time for the gases you monitor most often.
• Compatible with IntelliDoX. Save time and centralize data with automated bump testing, calibration and instrument management. Use IntelliDoX docking stations with Honeywell SafetySuite Device Configurator software to maintain and monitor your entire fleet from practically anywhere.
FEATURES AND BENEFITS
For even more time-saving convenience — plus remote visibility on alarms — choose the wireless version. And manage it from your smartphone.
Pair the wireless Honeywell BW™ Solo with our Safety Communicator mobile app and detector readings are sent instantly to Honeywell’s real-time monitoring software – Honeywell Safety Suite – which can be accessed from any device with an internet connection, and get remote visibility on worker safety and location.
You can also use the wireless Honeywell BW™ Solo to share gas data with the desktop software — no dock required.
Other Honeywell BW™ Solo features:
• Option to activate IntelliFlash™ or non-compliance flash
• Ability to assign detectors to workers and locations
• Easy-to-read display for multiple languages
• Data logging with rolling 24-hour peak reading

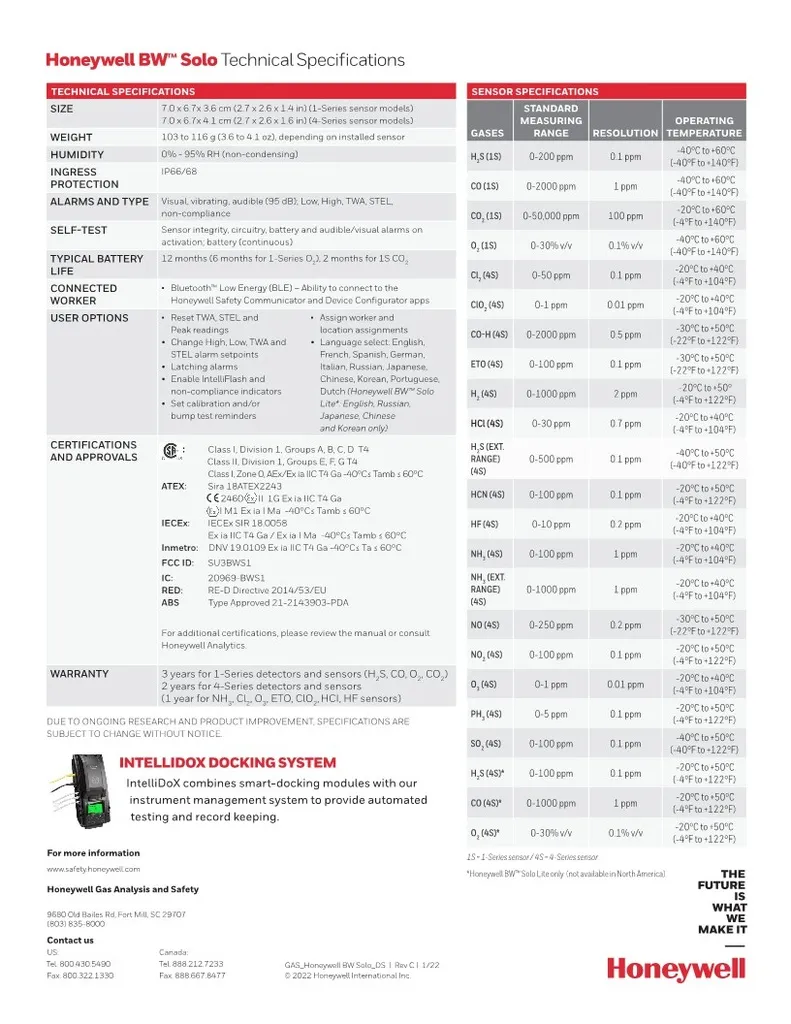

Honeywell BWTM Solo Technical Specifications
SIZE 7.0 x 6.7x 3.6 cm (2.7 x 2.6 x 1.4 in) (1-Series sensor models)
7.0 x 6.7x 4.1 cm (2.7 x 2.6 x 1.6 in) (4-Series sensor models)
WEIGHT 103 to 116 g (3.6 to 4.1 oz), depending on installed sensor
HUMIDITY 0% - 95% RH (non-condensing)
INGRESS PROTECTION IP66/68
ALARMS AND TYPE Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, non-compliance
SELF-TEST Sensor integrity, circuitry, battery and audible/visual alarms on activation; battery (continuous)
TYPICAL BATTERY LIFE 12 months (6 months for 1-Series O2), 2 months for 1S CO2
CONNECTED WORKER
• Bluetooth™ Low Energy (BLE) – Ability to connect to the Honeywell Safety Communicator and Device Configurator apps
USER OPTIONS
• Reset TWA, STEL and Peak readings
• Change High, Low, TWA and STEL alarm setpoints
• Latching alarms
• Enable IntelliFlash and non-compliance indicators
• Set calibration and/or bump test reminders
• Assign worker and location assignments
• Language select: English, French, Spanish, German, Italian, Russian, Japanese, Chinese, Korean, Portuguese, Dutch (Honeywell BW™ Solo Lite*: English, Russian, Japanese, Chinese and Korean only)
CERTIFICATIONS AND APPROVALS :
Class I, Division 1, Groups A, B, C, D T4
Class II, Division 1, Groups E, F, G T4
Class I, Zone 0, AEx/Ex ia IIC T4 Ga -40°C≤ Tamb ≤ 60°C
ATEX: Sira 18ATEX2243,
CE 2460 II 1G Ex ia IIC T4 Ga
Ex I M1 Ex ia I Ma -40°C≤ Tamb ≤ 60°C
IECEx: IECEx SIR 18.0058
Ex ia IIC T4 Ga / Ex ia I Ma -40°C≤ Tamb ≤ 60°C
Inmetro: DNV 19.0109 Ex ia IIC T4 Ga -40°C≤ Ta ≤ 60°C
FCC ID: SU3BWS1
IC: 20969-BWS1
RED: RE-D Directive 2014/53/EU
ABS Type Approved 21-2143903-PDA
WARRANTY: 3 years for 1-Series detectors and sensors (H2S, CO, O2, CO2), 2 years for 4-Series detectors and sensors, (1 year for NH3, Cl2, O3, ETO, ClO2,HCI, HF sensors)
SENSOR SPECIFICATIONS
GASES / STANDARD MEASURING RANGE / RESOLUTION / OPERATING TEMPERATURE
H2 S (1S) 0-200 ppm 0.1 ppm -40°C to +60°C
CO (1S) 0-2000 ppm 1 ppm -40°C to +60°C
CO2 (1S) 0-50,000 ppm 100 ppm -20°C to +60°C
O2 (1S) 0-30% v/v 0.1% v/v -40°C to +60°C
Cl2 (4S) 0-50 ppm 0.1 ppm -20°C to +40°C
ClO2 (4S) 0-1 ppm 0.01 ppm -20°C to +40°C
CO-H (4S) 0-2000 ppm 0.5 ppm -30°C to +50°C
ETO (4S) 0-100 ppm 0.1 ppm -30°C to +50°C
H2 (4S) 0-1000 ppm 2 ppm -20°C to +50°
HCl (4S) 0-30 ppm 0.7 ppm -20°C to +40°C
H2S (EXT. RANGE) (4S) 0-500 ppm 0.1 ppm -40°C to +50°C
HCN (4S) 0-100 ppm 0.1 ppm -20°C to +50°C
HF (4S) 0-10 ppm 0.2 ppm -20°C to +40°C
NH3 (4S) 0-100 ppm 1 ppm -20°C to +40°C
NH3 (EXT. RANGE) (4S) 0-1000 ppm 1 ppm -20°C to +40°C
NO (4S) 0-250 ppm 0.2 ppm -30°C to +50°C
NO2 (4S) 0-100 ppm 0.1 ppm -20°C to +50°C
O3 (4S) 0-1 ppm 0.01 ppm -20°C to +40°C
PH3 (4S) 0-5 ppm 0.1 ppm -20°C to +50°C
SO2 (4S) 0-100 ppm 0.1 ppm -40°C to +50°C
H2S (4S)* 0-100 ppm 0.1 ppm -20°C to +50°C
CO (4S)* 0-1000 ppm 1 ppm -20°C to +50°C
O2 (4S)* 0-30% v/v 0.1% v/v -20°C to +50°C
1S = 1-Series sensor / 4S = 4-Series sensor
BW Solo Wireless Single-Gas Detector
