DISCONTINUED

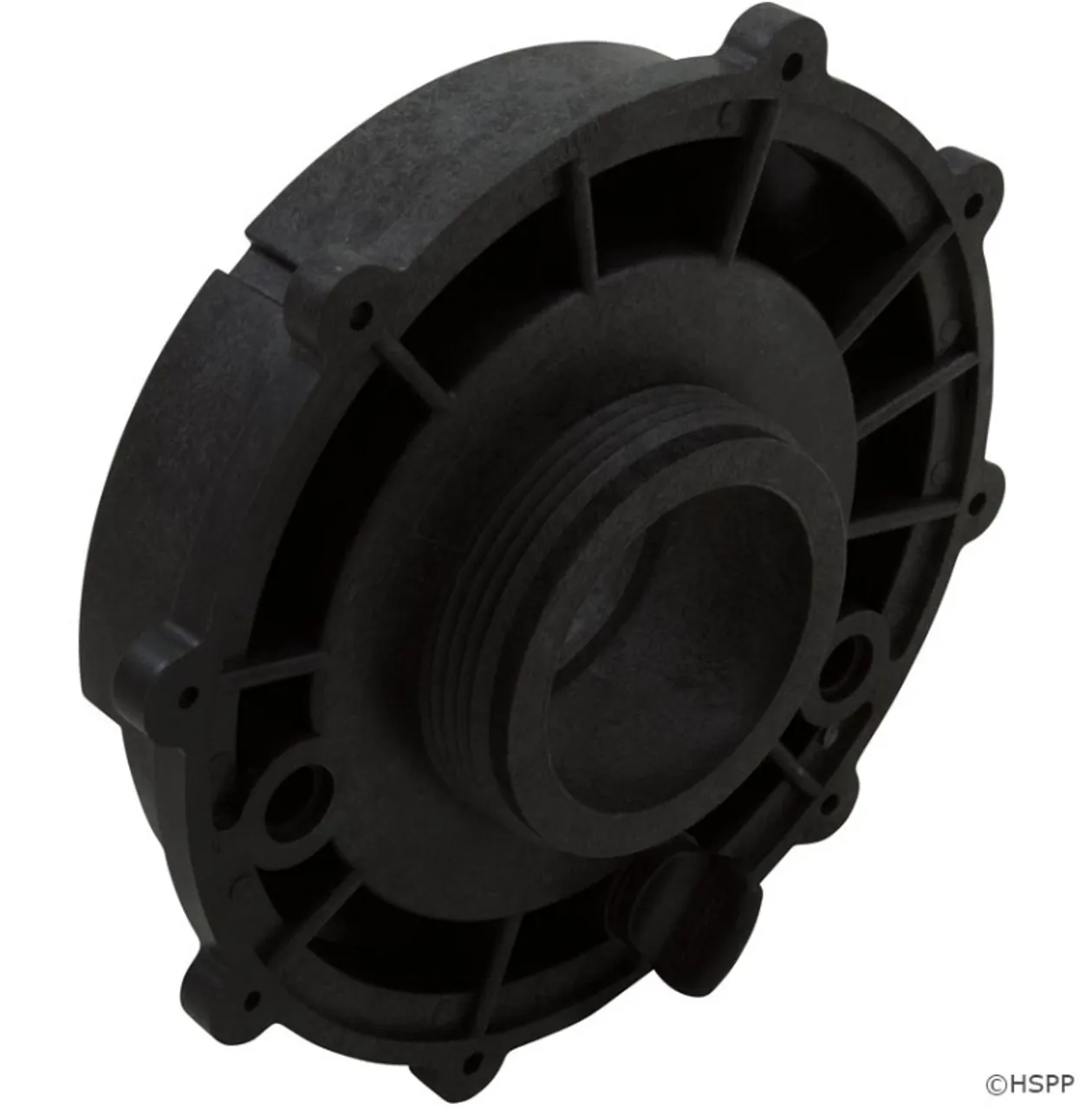

AquaFlo XP2 volute faceplate 91231605 is no longer available. You will need to replace the complete Aquaflo XP2 wet end, see below.

Due to a design change in the current XP2/XP2e pump wet ends, face plate or volute replacement is not suggested. Instead, replace the wet end to avoid issues with how it fits.

48 Frame Wet Ends Available:

91041608-000  XP2 1.0hp 2"mbt 48fr

91041815   Gecko Aqua-Flo XP2/XP2E 1.5hp 2"mbt 48fr

91041820  Gecko Aqua-Flo XP2/XPE 2.0hp, 2", 48fr

91041825  Gecko AquaFlo XP2/XP2E 2.5hp, 2"mbt, 48fr

91041830  Gecko AquaFlo XP2/XP2E 3.0hp, 2"mbt, 48fr

91041613  Gecko AquaFlo XP2, 4.0hp, 2", 48fr

56 Frame XP2 Pump Wet Ends 6.1" Diameter Available

91041622   Gecko AquaFlo FMXP2 2.0hp 2"mbt 6.1"dia 56fr

91041623  Gecko AquaFlo FMXP2 2.5hp 2"mbt 6.1"dia 56fr

91041624    Gecko AquaFlo FMXP2 3.0hp 2"mbt 6.1"dia 56fr

56 Frame XP2 Pump Wet Ends 6.3" Diameter are unavailable.

2 inch connection

2-5/8" ID on back side to receive impeller ring.

You will receive the compatible 91231606 when ordering this discontinued 91231605.

Replaces:
6000-151
91231605 Difference is ID measurements

Uses O-164 type housing oring.

Uses drain plug 92290070 and plug oring O-25.

You can use unions 52272000 if needed.

Typically, the manufacturer is recommending the replacement of the complete wet end instead of faceplate or volute replacement due to design changes in the XP2 and XP2e pump wet ends.
