Description
Aims Part Number: PWRINV500036W

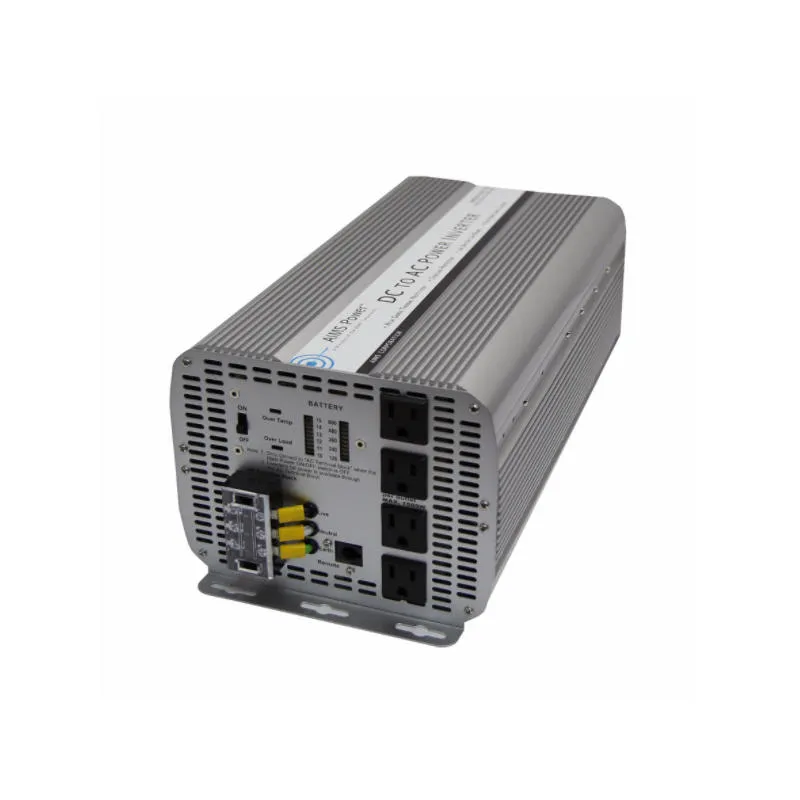

The Aims PWRINV500036W 36V 5000 watt modified sine wave DC to AC power inverter is great for applications that require a 36 volt DC input such as that use forklift batteries for example. The inverter itself has all the same specs and features of the Aims mainstay 5KW model. We offer free Ground shipping on this inverter each and every day, call us today if you have any questions!
Features:
- 5000 Watt max continuous power
- 36 Volt Power Inverter
- Modified sine wave
- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- AC Direct Connect Terminal
- Over Temperature LED indicator
- Over Load LED indicator
- Quadruple ac receptacle that can be used with any seperate spliter to provide even more outlets
- On/off switch
- Over Temperature protection
- Over Load protection
- Single cooling fan operation, thermally controlled
- Internally fuse protected
- ac output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
Specifications:
- Continuous output power: 5000 Watts
- Surge power capability (peak power): 10,000 Watts
- dc input / operating voltage: 30 to 48 Volts
- Output voltage: 120 Volts ac +/- 10%
- Output wave form: modified sine wave with phase correction
- Output frequency: 60 Hz +/- 1 Hz
- Battery low voltage alarm: 31 +/- 0.5 Volts
- Battery low voltage shutdown: 28 +/- 0.5 Volts
- No load current: < 0.9 Amps
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- No load minimum operating temperature: -15 degrees Celsius
- Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
- AC Output Socket Type: quadruple Type 2 -3 prong
- High input voltage protection: 48 volts
- Low input voltage shutdown: 28 volts
- Internal fuse protection
- Product size (L x W x H): 17X 7.75X 6
- Weight: unit 18 lbs boxed 20 lbs
Aims 5000 Watt 36 Volt Power Inverter PWRINV500036W
