Description
Part Number: PWRINV150R

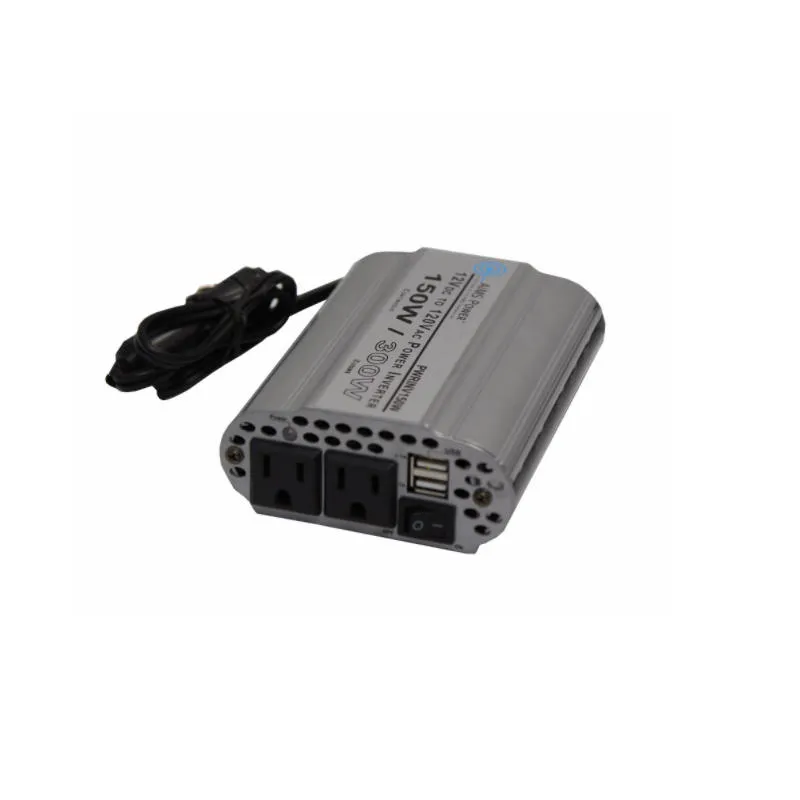

The Aims PWRINV150R 150 watt DC to AC power inverter is great for small devices and can be plugged directly into your vehicle’s cig lighter or DC power port.
Features:
- Now with thermal fan
- 150W continuous power
- Modified sine wave
- Green LED on front panel to confirm power on
- Red LED on front panel to warn of a faulty condition
- Dual ac receptacles
- On/off switch
- Over Temperature protection
- Over Load protection
- Noise free operation
- Includes a thermal cooling fan
- Attached 22 inch cigarette lighter connections with built in fuse
- AC output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Instruction manual
- Free tech support
- 1 Year Warranty
Specifications:
- Continuous output power: 150 Watts
- Surge power capability (peak power): 400 Watts
- DC input / operating voltage: 10 to 15 Volts
- Output voltage: 120 Volts AC
- Output wave form: modified sine wave
- Output frequency: 60 Hz
- Battery low voltage alarm: 10.5 +/- 0.5 Volts
- Battery low voltage shutdown: 10.0 +/- 0.5 Volts
- No load current: 0.6 Amps +/- 0.2
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- No load minimum operating temperature: -15 degrees Celsius
- Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
- 2 – AC Output Socket Type: single Type 2 -3 prong
- High input voltage protection: 15V
- Low input voltage shutdown: 10V
- External fuse protection
- Product size (L x W x H): 4X 3.25X 2
- Weight: 13 oz
Aims 150 Watt 12V Power Inverter PWRINV150W
