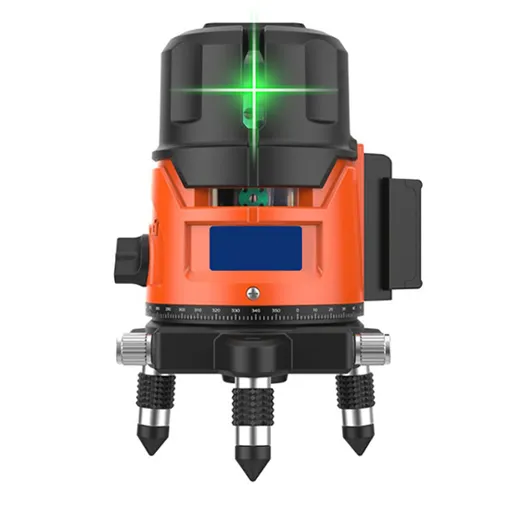

Best green beam laser level with 3 lines, 360 degree precise positioning of vertical lines to reduce errors and increase efficiency. Both DC (3 pcs 1.5V AA batteries) and AC (100-240V /50-60Hz) power available for this unit. You can hit the horizontal line to the ground/ceiling if level tool combines with tripod and adapter.
Specification
Model |
T-SL-03 |
No.of Laser Lines |
3 |
Leveling Type |
2 vertical line, 1 horizontal line, 1 plumb dot, 3 bright dots |
Laser Wavelength |
635nm |
Self-Leveling Range |
±3° |
Launch Angle |
≥120° |
Horizontal Accuracy |
5m±1mm |
Vertical Accuracy |
5m±1mm |
Plumb Dot Accuracy |
±1mm at 1.5m |
Line Width |
2mm |
Line Color |
Emerald green |
Power Supply |
3 x AA batteries or AC power |
IP Rating |
IP 54 |
Operation Temperature |
0℃~40℃ |
Battery Type |
Digital LCD rechargeable lithium battery (8 hours standby) |
Function Key |
Fingerprint touch buttons |
Laser Head |
Made in Germany |
Laser Tube Life |
10 years |
Outdoor Visible Distance |
About 15m |
Indoor Visible Distance |
About 15m~40m |
Application |
Ceiling, home decoration, door and window installation, etc |
Weight |
2.5kg |
Details
3 Line Laser Level Diagram
Tips: How to choose best laser level?
The quality of the rotary laser level is related to the perfection of the entire project. Therefore, skills are required when purchasing a rotary laser level. If you want to buy a suitable laser level, you need to consider the following three points:
- Verticality. Because the verticality determines the angle difference after laser emission, the angle difference will affect the horizontal size.
- Launch angle. Laser is also a kind of light source, any light source that emits light will have a light angle. Therefore, when selecting, under the same distance condition, the smaller the emitted light spot, the higher the accuracy.
- The firmness of the structure. The firmness of the structure determines whether the laser level is easily damaged during storage and use, even after it is dropped to the ground. If it is not easy to damage, it depends on whether it will affect the overall frame structure. Otherwise, it will be broken after using it several times, or it will be checked frequently.
